Unleash Excellence with Ultra High-Performance Concrete
Ultra-High Performance Concrete
Ultra-High-Performance Concrete (UHPC) redefines construction materials, boasting exceptional strength and durability. With compressive strengths surpassing 130 MPa and low porosity, UHPC ensures unparalleled resistance to corrosion and wear. Its innovative composition allows for slender designs, making it a preferred choice for robust, long-lasting structures.
Benefits of UHPC
Ultra High-Performance Concrete (UHPC) is a marvel of modern architectural engineering. It’s a cutting-edge composite material that combines cement, fine aggregates, fibers, and high-quality admixtures to create a concrete of unparalleled strength, durability, and versatility. UHPC represents the pinnacle of concrete technology and offers architects and designers a canvas for crafting architectural elements that defy convention.
Durability & Low Maintenance
Reproducibility of Shapes
Low Thermal Conductivity
Fire resistance
Environmentally friendly
UHPC Benefits
Ultra-High-Performance Concrete (UHPC) can be tailored to meet a wide variety of aesthetic, structural, requirements Below are some of the possibilities that UHPC bring to the design
UHPC Panel Details
UHPC panels, which can reach dimensions of 60” X 144” (1,524mm x 3,657mm) and can also be customized for specific projects, are initially cast in large sizes and then trimmed down. They are subsequently cut into smaller sizes within the facility to suit various project requirements and in collaboration with the installation contractors. The technical team works alongside architects in the early design stages to optimize panel layouts, aiming to make the best use of materials. To enhance your proposed panel layout, feel free to contact our team for a review and optimization process.
Min. Dimensions 6″ x 48″ (152mm x 1,219mm)
Min. Dimensions 6″ x 48″ (152mm x 1,219mm)
Min. Dimensions 6″ x 48″ (152mm x 1,219mm)
Max. Dimensions 48″ x 144″ (1,220mm x 3,657mm)
Max. Dimensions 48″ x 144″ (1,220mm x 3,657mm)
Max. Dimensions 48″ x 144″ (1,220mm x 3,657mm)
Max. Custom Dimensions 60” X 144” (1,524mm x 3,657mm)
Max. Custom Dimensions 60” X 144” (1,524mm x 3,657mm)
Max. Custom Dimensions 60” X 144” (1,524mm x 3,657mm)
Standard Thickness 5/8″ (15.87mm)
Standard Thickness 5/8″ (15.87mm)
Standard Thickness 5/8″ (15.87mm)
Custom Thickness (Max.) 1 5/8″ (41.275mm)
Custom Thickness (Max.) 1 5/8″ (41.275mm)
Custom Thickness (Max.) 1 5/8″ (41.275mm)

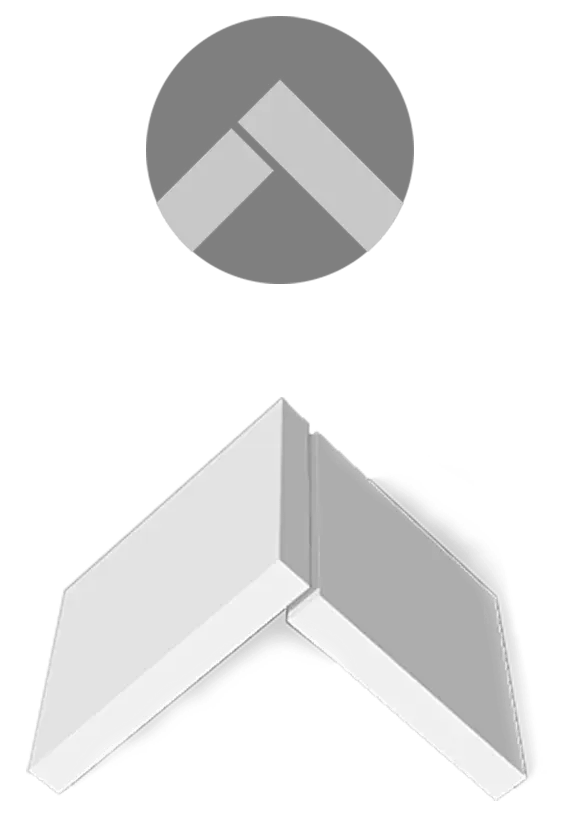

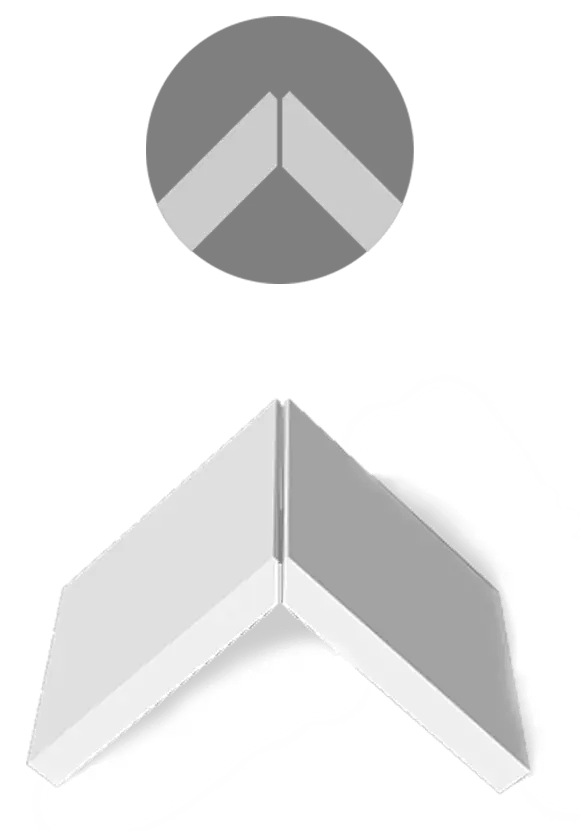

Corner Options
Various closed and open corner possibilities exist for UHPC panels, achieved by accurately cutting finished panels to form straight or mitered edges. To explore tailored corner solutions, contact our Technical Support Team.
Products are manufactured in Gray color unless one of our colors are specifically requested. We can also custom match colors.
STANDARD
SMOOTH
SMOOTH
SMOOTH
SMOOTH
One of UHPC’s defining qualities is its ability to enhance wide range of colors. We have developed ten standard shades for the construction industry with the ability to formulate customized colors as per requirements. The Platinum and White colors are formulated without any pigment. All other colors contain pigments that are UV-stable and specifically engineered for use in concrete. These pigments are added during the mixing Process.
We can also custom match colors.
Hydrophobic and Oleophobic Sealants
To protect the UHPC surface from dirt and stains, a transparent hydrophobic sealant can be applied to the surface. Hydrophobic and Oleophobic sealers are invisible and do not affect the rich, natural appearance of the UHPC surface; they do not form any film or layer on the surface. Furthermore, UHPC itself is highly impermeable.
Witness the Transformation with UHPC
Experience the incredible potential of UHPC through real-life project examples that exemplify its power in a variety of architectural applications. From iconic facades to bespoke interior elements, these projects showcase the versatility, beauty, and durability of UHPC. Explore how Petra Design collaborates with architects and designers to turn visionary designs into concrete reality with UHPC.
Collaborate with Petra Design
Are you ready to embark on a journey of architectural innovation? Collaborate with Petra Design to explore the limitless possibilities of GFRC and UHPC. Contact our knowledgeable team, share your architectural visions, and let us transform your ideas into reality. Together, we’ll push the boundaries of design and create architectural masterpieces that inspire and endure.
